The high-performance computing chip developed by Goldshell CK6 19.3T of powerful computing power. At present, CK6 performs very well in many CKB mining machines.

Do you want to know the real performance of Goldshell CK6?

CK6 is how to operate?

So read on!

Goldshell CK5 mining machine is a special CKB ASIC mining machine developed based on Eaglesong algorithm. This model claims to have 12T large computing power, and its claimed power consumption ratio is as low as 0.2W/G.  Today ChainNode is offering you the first experience of this machine, from unpacking to mining.

The factory packaging of Goldshell CK5 mining machine is carton, and no product model and other information is marked outside the carton.  Open the packing box, the CK5 mining machine is fully embedded and protected by pearl foam and a supporting power line is installed in the box.  Measured with the original box of foam packages, there is no need to worry about turbulence in transportation and violent sorting damage to the machine.

【 Machine parameters 】

The following figure shows the parameters marked on the official website ↓

The measured 3d length of the CK6 mining machine we received is 280mm (including fan thickness) * 180mm* 290mm.  The weight of the naked machine is 9.0kg, and the gross weight of the power cord including the packing case is 10.0kg.

Mining machine and power supply integrated design, CK5 mining machine is equipped with Shanghai Yigong model BP-H-2800-10-A power supply with peak power up to 2800W, the power supply is equipped with A 16A plug, which is different from the previous household type mining machine 10A plug power supply and not universal.  Therefore, it also indicates that this type of mining machine is not suitable for mining at home. If the family needs to transform the circuit to meet the electrical load of the mining machine.

There are four fans in total, two air inlet and two air outlet.  The fan model is Snowfan YY1203,DC12V, which is a more common fan of mine models.  Because the engineering prototype obtained by xiaobian has undergone stability test, some dust accumulates on the fan, so we can ignore it.

The four fans can meet the heat dissipation during normal operation, but the operation noise is relatively high. When the fan is plugged in for the first time, the operation sound is nearly 90dB when it is started. Even after a day of smooth operation, the operation sound measured by the air outlet is 80dB, and the operation noise is 72.9dB one meter away.

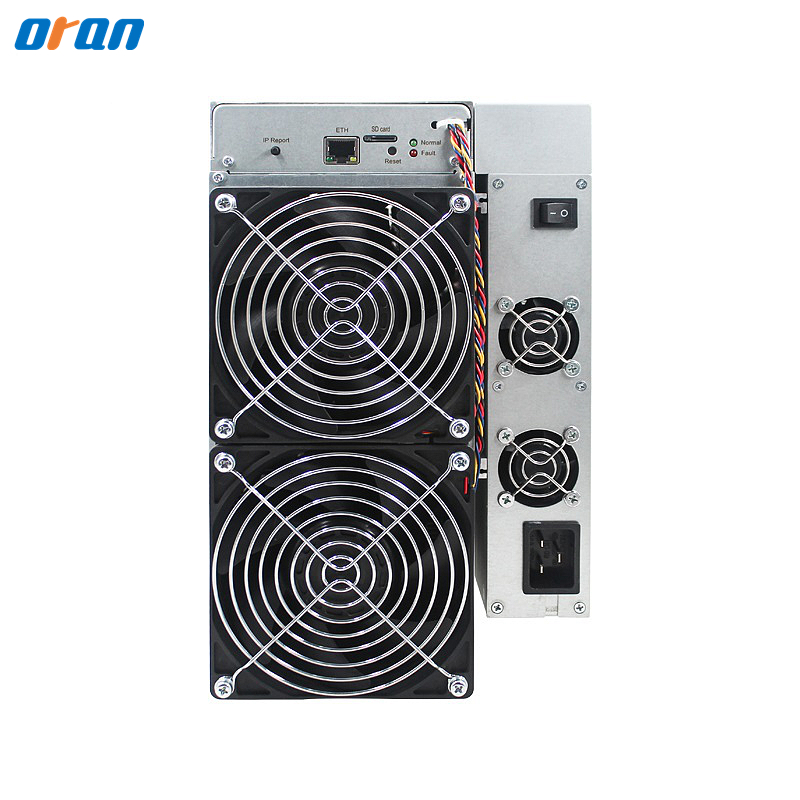

The interface of the control board of Goldshell CK6 mining machine is very common, including IP reporting button, Ethernet interface, TF card slot, restart button and status indicator, which is relatively convenient for miners to get started.
