Rated calculation force: 1.23gh/s (+ - 8%)

Power consumption: 1500W (+ / - 8%, normal mode, wall power consumption, 93% efficiency of power supply, 25 ℃ ambient temperature)

Dimensions: (L) 350mm * (W) 500mm * (H) 155mm, double barrel

Net weight: 8.46kg (without power supply)

Voltage: + 12V

Power requirements: 1600W or above, 17 PCI-E 6pin interfaces

Cooling: air cooling, each barrel has 2 fans, a total of 4 fans

Network connection: Ethernet

Power connection mode: 2 PCIe interfaces for each computing board

Innosilicon is a professional developer and manufacturer of ASIC mining machines, and its products cover many fields.28nm bitcoin and Wright coin mining machines have been widely used in China and occupy a large share in the mainstream market.

As the latest generation of innosilicon mining machine released in early January 2018, A6 ltcmaster mining machine is applicable to all cryptocurrency mining based on script algorithm. Officially announced parameters are as follows: 1.23gh/s (+ / - 8%), 1500W (+ / - 8% @ 25 ° C)

Now, we bring you the latest evaluation of innosilicon A6 ltcmaster as follows.

Open photo

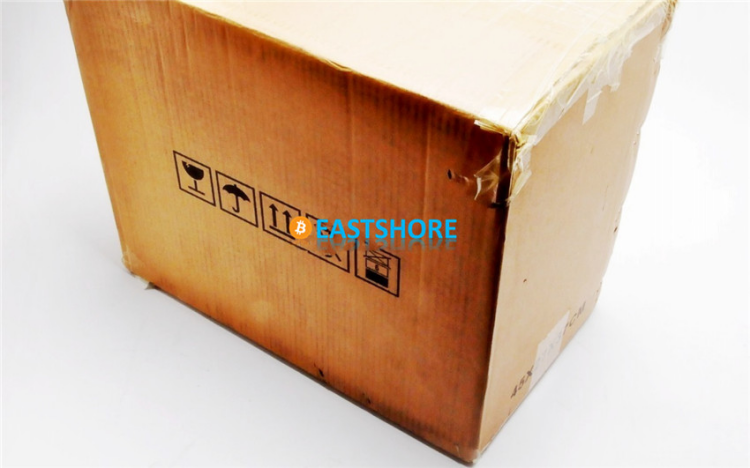

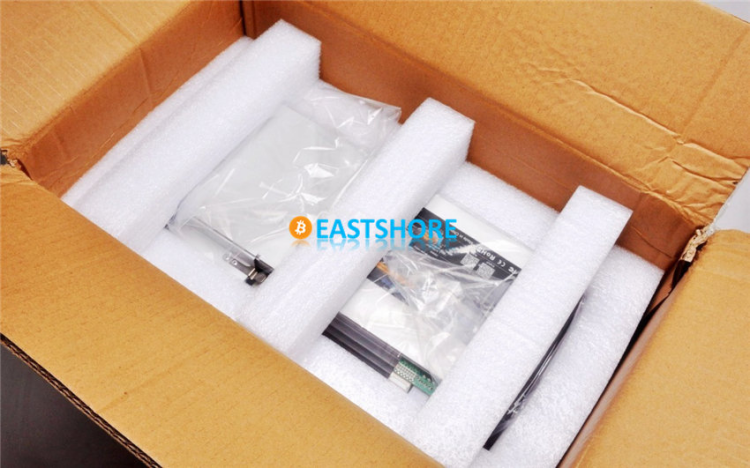

Innosilicon A6 is packed in five layers of industrial carton, with a complete logistics warehouse label. The mine machine adopts moistureproof bags and EPE foam packages, effectively ensuring transportation safety.

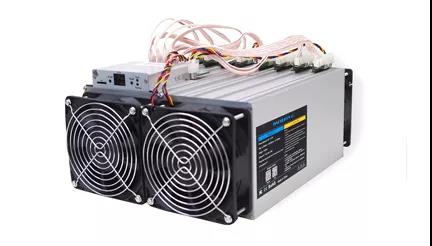

 The miner adopts double fan design, front and rear double fans, and the alloy shell is compact and firm.

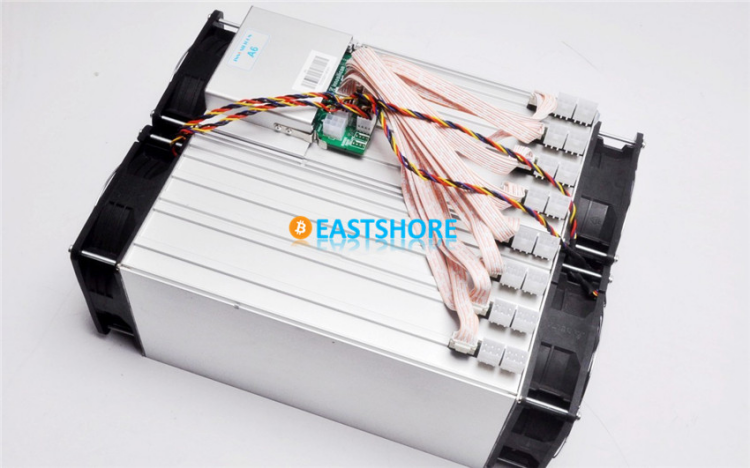

Each twin of the miner consists of four hash boards shared on the controller.It can be seen from the above that each calculation board has two PCI-E 6pin power interfaces and data cables.

Miner's side:

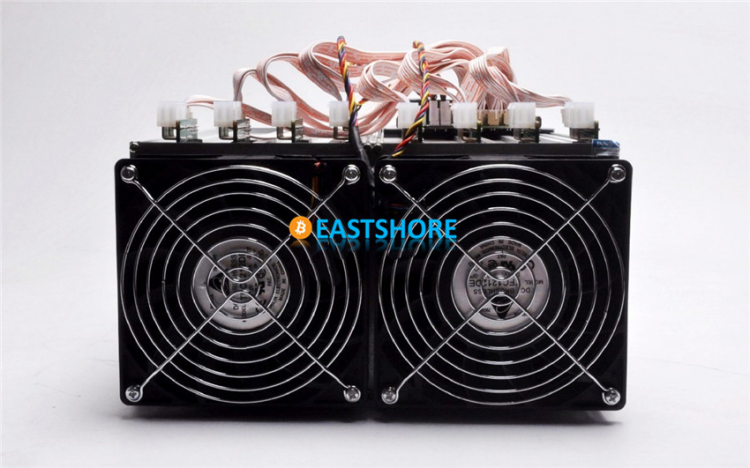

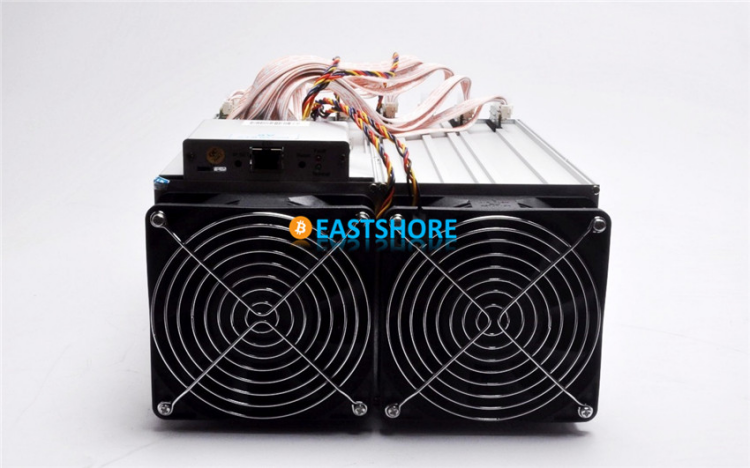

On the front, we can see that the controller is at the top, the network interface is in the middle of the controller, and there are two cooling fans on the front (the air inlet is on this side)

A label is attached to the other side of the miner to display basic parameters and warning information.

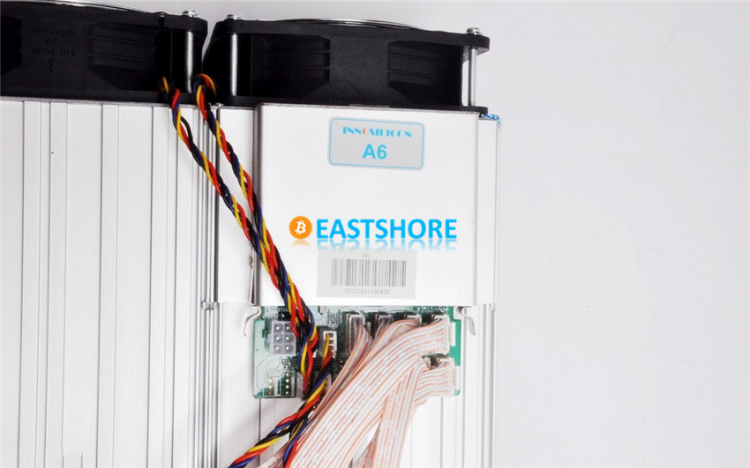

At the top of the controller, from left to right, there are data cable, 4Pin fan power cable and controller power interface.

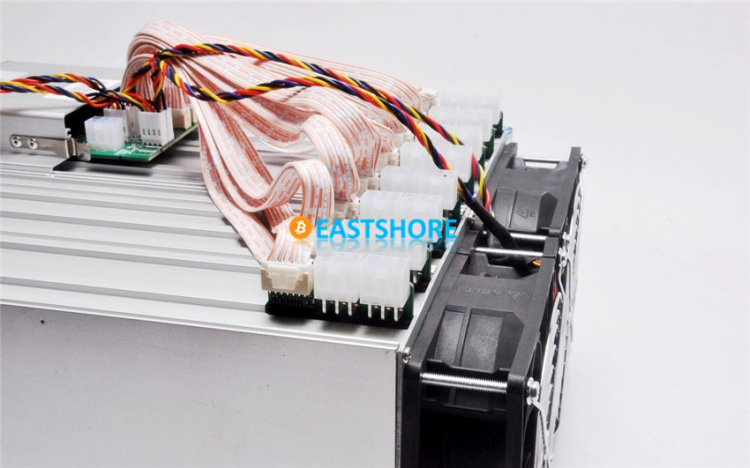

The top of the back of the miner is the power interface of the force calculation board, and there are two cooling fan outlets at the bottom.

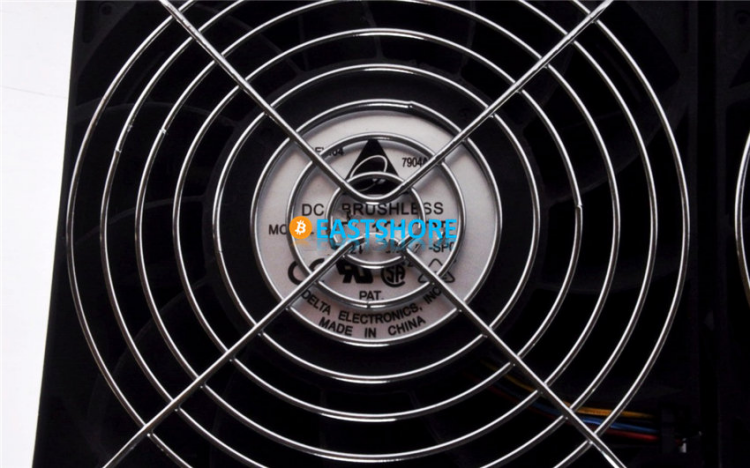

Specification of cooling fan: 12cm-12v3.4a. The data line interface adopts snap design to ensure close contact and stable data transmission.

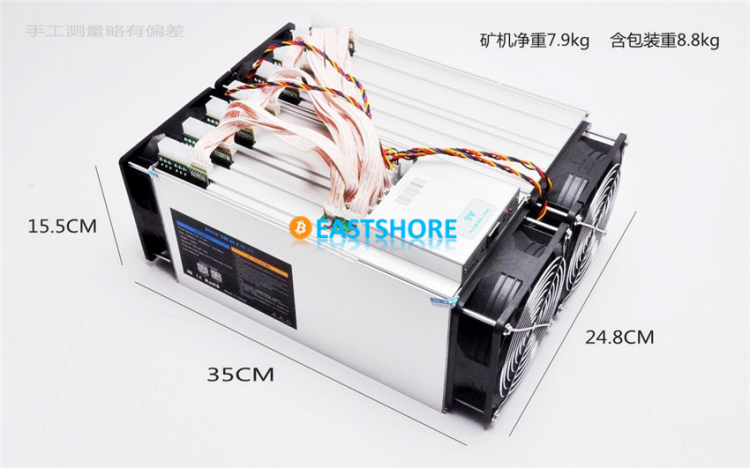

The physical parameters of the miner are shown in the figure below:

Installation and testing

The setting is relatively simple. Just plug in the power cable and network cable.Please refer to the official manual for specific setting steps: http: / / www.innosilicon. Com. CN / API / download. PHP? Url = a6-master-of-the-world-use-instructions - en.pdf

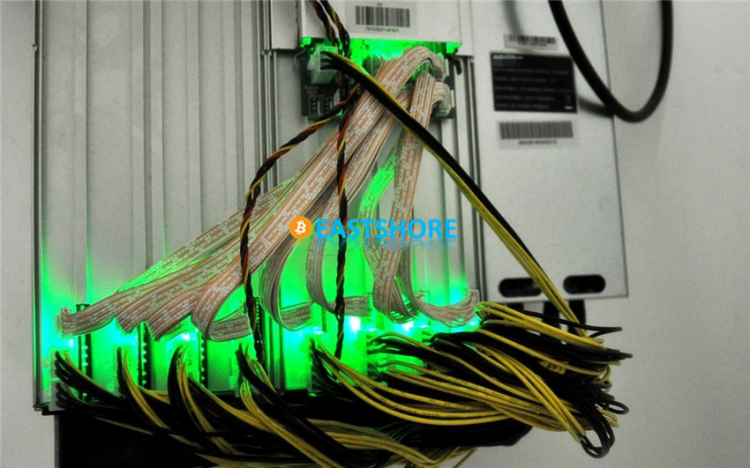

The normal operation status indicator is shown as follows:

Other

• A6 ltcmaster Wright coin miner operates stably, the measured average computing power is between 1.2g-1.25g, and the power consumption is about 1535w, which is roughly equivalent to the official parameters.

• A6 ltcmaster Wright coin miner is applicable to all cryptocurrencies using script algorithm.

• It's a little noisy, but it's common for today's high computing miners.

• Thanks to the high-speed cooling fan, it has good heat dissipation and small temperature difference between the front and rear.

• There is a certain overclocking space.

• The compact and rugged design makes it easy to operate and stable. It is suitable for a variety of mining scenarios.
