The official parameter of D1

Calculate power:48TH/s±5%Blake-256r14

Chip process: 16nmFinFETCompact

Number of chips: 3 power plates

Wall power consumption: 2200W

Power efficiency: 46W/TH±10%

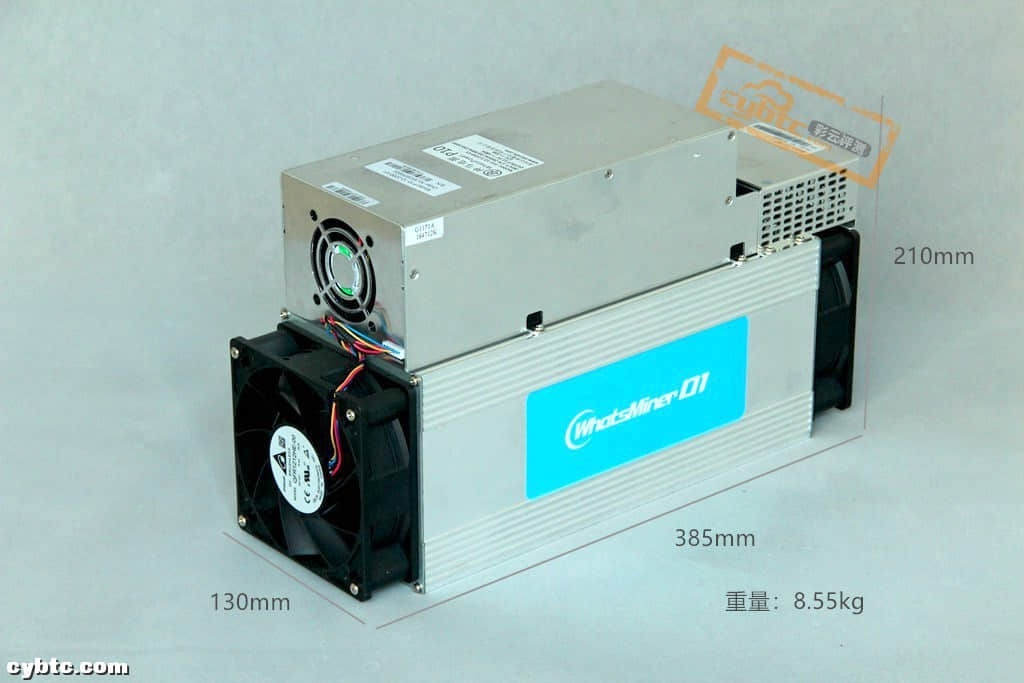

Dimensions: 385mm (L) :155mm (W) :239mm (H)

Net weight: 8.55 kg

Whatsminer D1

1. Whatsminer D1 D1 adopts the all-in-one design to improve the loading efficiency, and the power consumption ratio of 45W/t is further improved compared with the parameters released by the official earlier.

2. What is the strong performance of  D1 mining machine? The average calculation power of the whole machine is 48T, and the power consumption is within 2200W.

3. Whatsminer D1 whole machine maintains what mine machine M10 fine tradition, is "stable", the mine machine has been running stably in the long time test, the calculation force is stable, the power is stable, the temperature is constant, there is no fault and problem.

Recently, bitmicro released a new product called D1, which is bitmicro's first Blake256 algorithm server. Known for its stable performance and low power consumption, the release of THE D1 server is also highly anticipated.

Name: Decred

Total currency: 21 million

Block production time: 5 minutes, every 6144 blocks (about 21.33 days) according to the 100/101 coefficient of production once;

Release date: February 2016

Mining method: POW+POS

Core algorithm: Blake256 r14

Difficulty adjustment: 144 blocks (approximately 12 hours)

Circulation: about 7.9 million

Last block end time: 2120

Whatsminer D1 looks like:

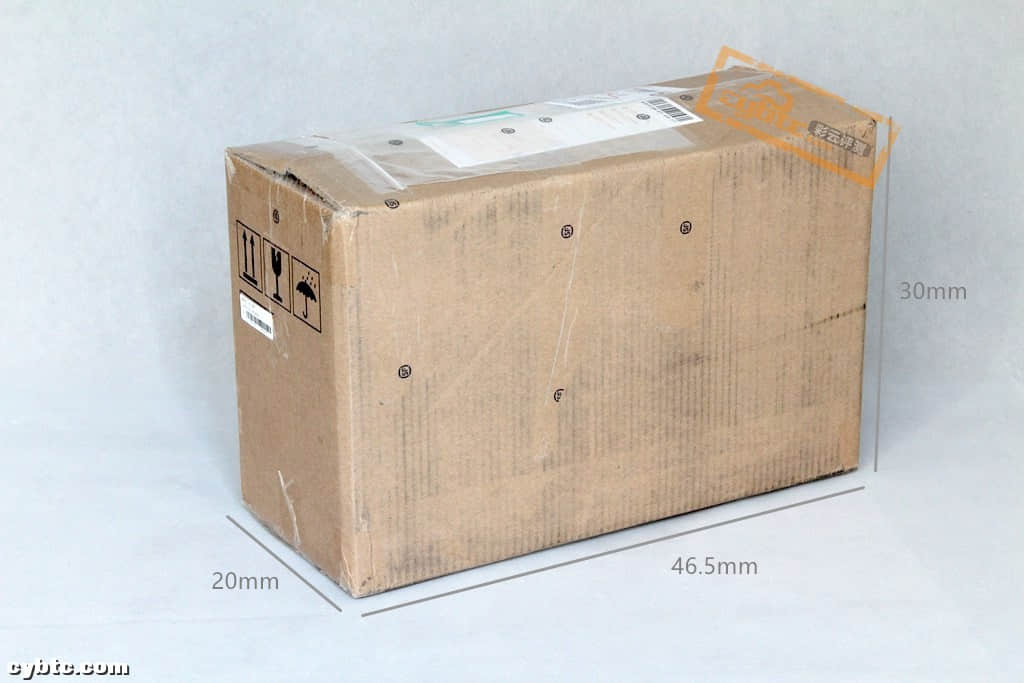

Whatsminer D1 from the outer packaging to the product style and what M10 is exactly the same, D1's outer packaging is also packaged by the industrial carton

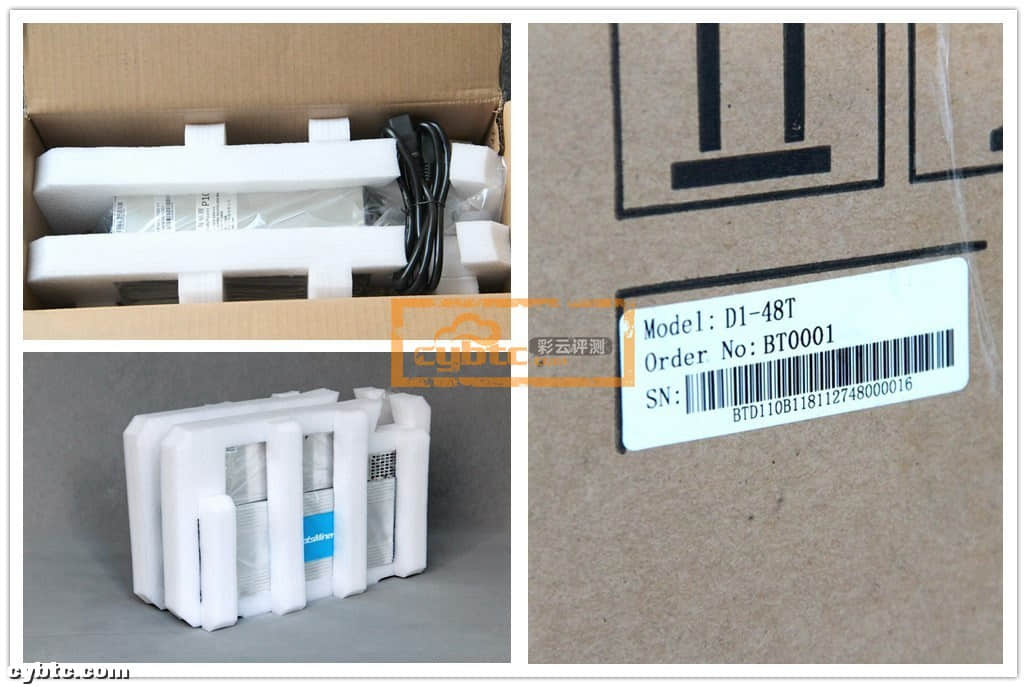

The product is wrapped in pearl foam and protected by dustproof and waterproof bags. The pearl foam board is customized to fit the main body and comes with a power cord. The label on the outer case identifies "D1-48T", which can be distinguished from the M10.

The attached 3*1.5mm, 10A power cord is not enough according to the power consumption of 2200W according to the official parameter, but after the later test, it shows that there is no pressure, and the 10A line is fully enough.

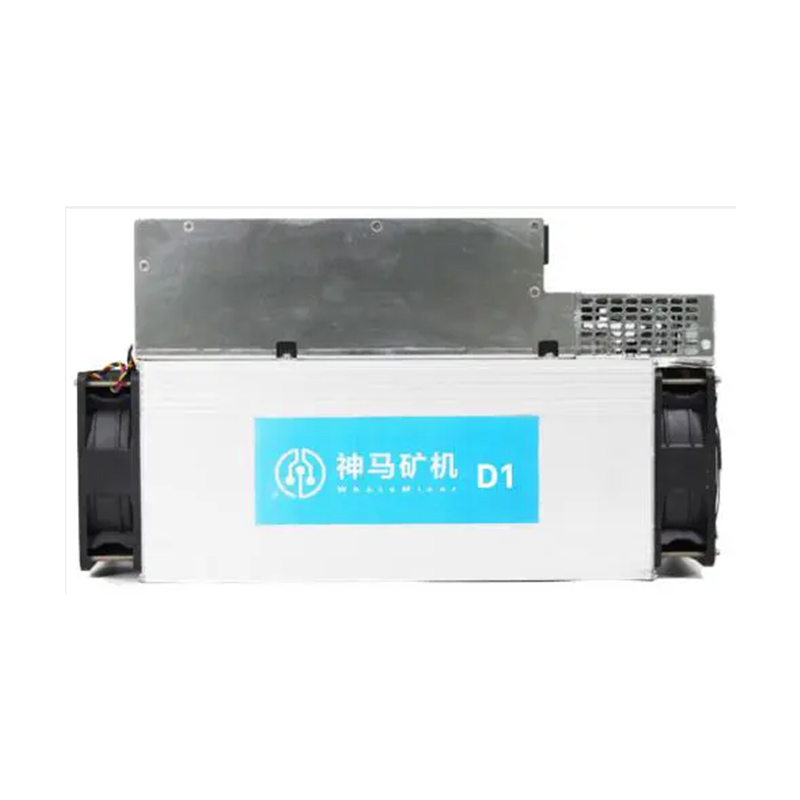

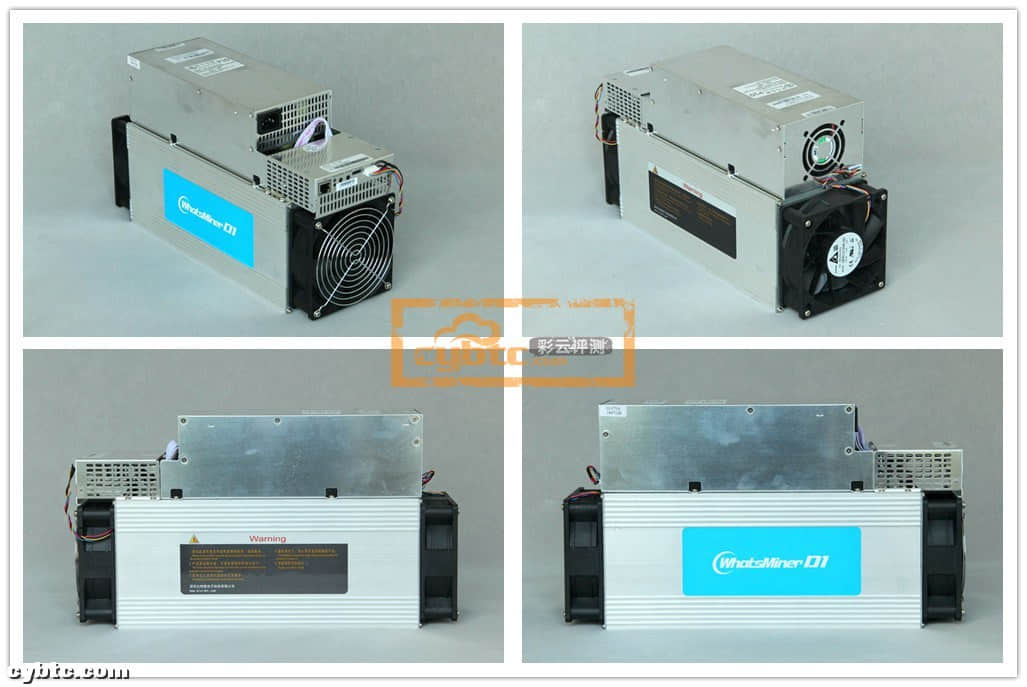

When you open the whole package, the complete product is revealed. You can see that the style, size and weight of other parts are the same as M10 except that the logo text in the middle is changed.

Whatsminer D1 has an all-in-one design, with power and machine integrated, and only the fan and control panel's power cord exposed.

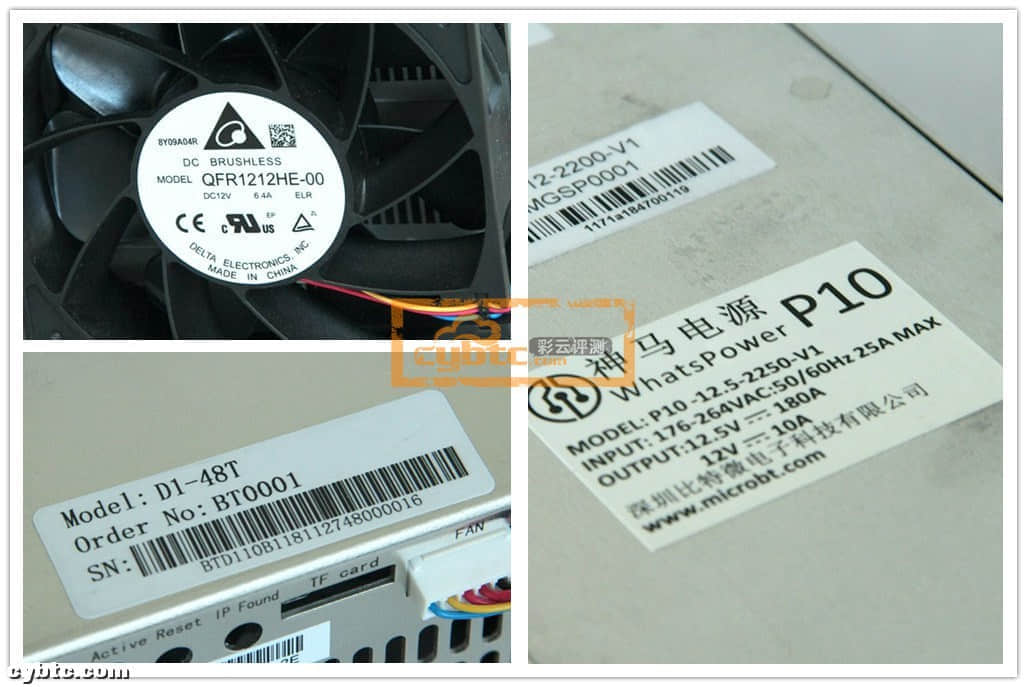

P10 has A rated power of 2250W, 12.5V*180A+12V*10A DC output. Two 6.4A fans are used to provide heat dissipation for the product. The model and calculation force are also marked "D1-48T" on the product.

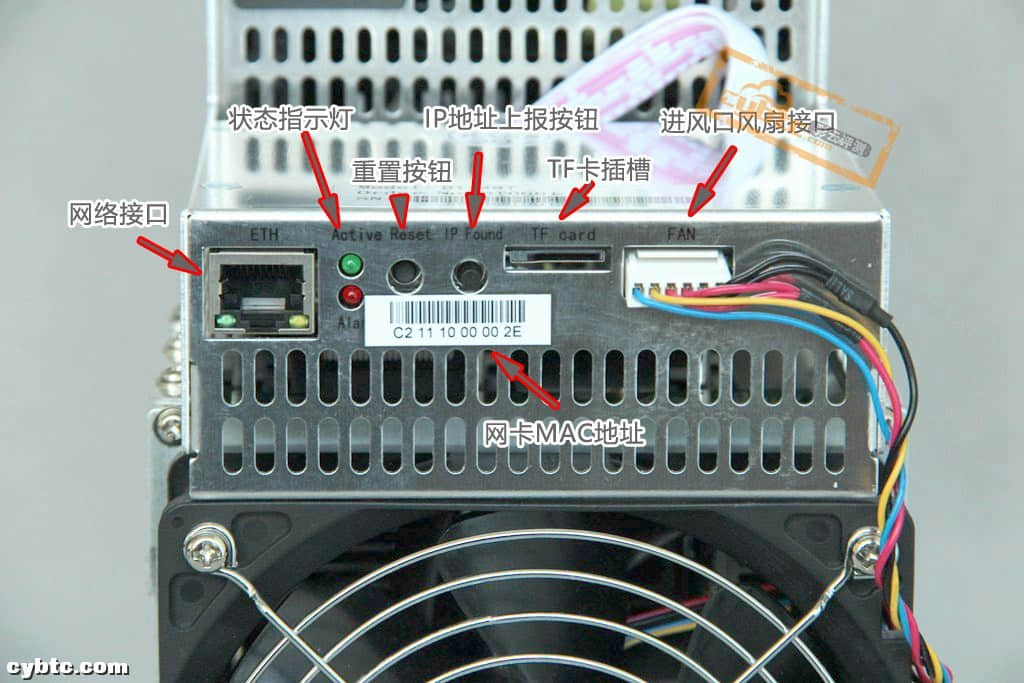

Whatsminer D1 control board provides an Ethernet interface, an operating status indicator, a system reset button, an IP address reporting button, a TF card slot, an air intake fan interface, and a NIC MAC address.

The internal details of the product can be seen by disassembling Whatsminer D1. The product is composed of 3 computing forces, and there are heat fins on both front and back sides of the computing force board. Each computing force board contains 70 chips code-named QA5100, forming 210 Blake-256 R14 computing power 48T Blake256 algorithm servers.

Whatsminer D1 summary:

1. Whatsminer D1 adopts the all-in-one design to improve the efficiency of the machine, and the power consumption ratio of 45W/t is further improved compared with the parameters officially released in the early stage.

2. Whatsminer D1 performance is strong, the average calculation power of the whole machine is 48T, the power consumption is less than 2200W, and the power consumption ratio of the comprehensive unit calculation power is 45W/T. It is the single Blake256 algorithm server with the largest calculation power and the best power consumption ratio on the market at present.

3. Whatsminer D1 machine to maintain the fine tradition of M10, is "stable", the machine has been stable operation for a long time in the test, calculation force stability, power stability, temperature is constant, there is no fault and problems.

Bitmicro official has always uphold the "extreme ingenuity, success visible" concept of product development, the official said that in order to better maintain the peaceful development of its ecology, Whatsminer D1 will be limited release, to avoid the occurrence of a sharp increase in computing power.
