The Avalon A851 is an improved version of the Avalon A841 with a power rating of 14.5TH/s and optimized for reliability and stability. Avalon A851 calculation power consumption ratio and calculation force density has also been increased, and after the iteration of the version of the upgrade, increase and improve the overheating protection function, effectively protect the safety of user investment.

The technical strength of avalon mining machine

Avalon mining machine first developed and demonstrated its 60Gh/s ASIC mining machine in September 2012, a machine that can generate powerful computing power to obtain bitcoin, and officially opened for sale in March 2013, because the mining efficiency of this batch of mining machine is significantly higher than the graphics card mining equipment at that time, Miners can recoup their costs in a matter of days, the avalon launch is already in short supply, and more people are starting to study bitcoin technology.

Avalon's A3256 (110nm process chip), developed by the Avalon project team, soon accounted for more than a third of the production power of the Avalon project. In the years that followed, Avalon also developed A3255 (55nm process) chip, A3233 (40nm process) chip, A3222(28nm process) chip A3218(28nm process) chip, A3212 (16nm process) chip Avalon's A3210 (16nm process) chip has kept Avalon at the forefront of mining and developed the world's first "variable power cluster system."

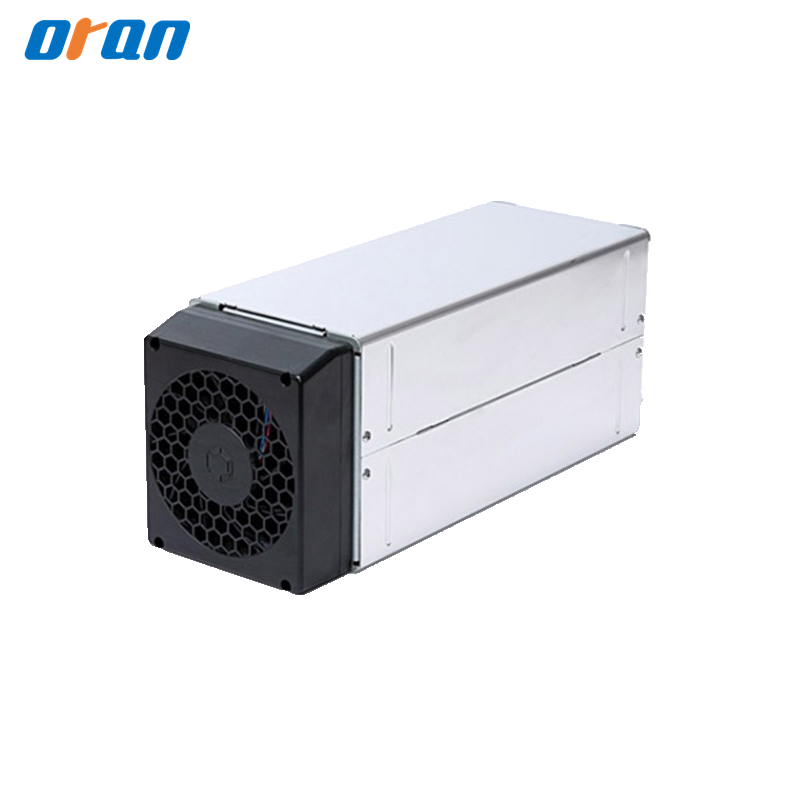

Avalon A851

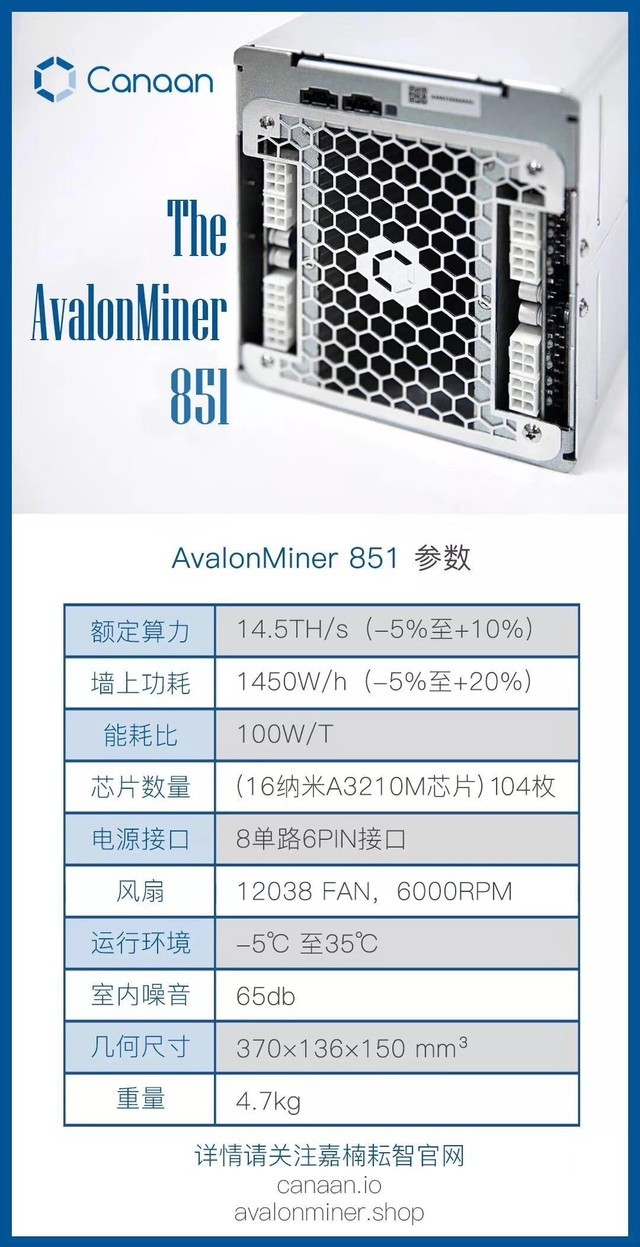

Basic parameters:

Type OF mining machine ASIC mining machine (professional mining machine)

Create currency Bitcoin (BTC)

Rated power 14.5th /S(-5%~+10%)

Rated power consumption 1450W/H (-5%~+20%)

Power consumption than 100 w/T

Chip parameters:

Chip A3210M

Number of Chips 104

Chip process 16nm

Other parameters:

Product size 370×150×136mm

The product weight is 4.7kg

Power port 8 x single 6-pin port

Network Connection Ethernet

Heat dissipation 12038 Fan, 6000RPM

65 db noise

Operating environment Operating environment: -5 ° C to 35 ° C

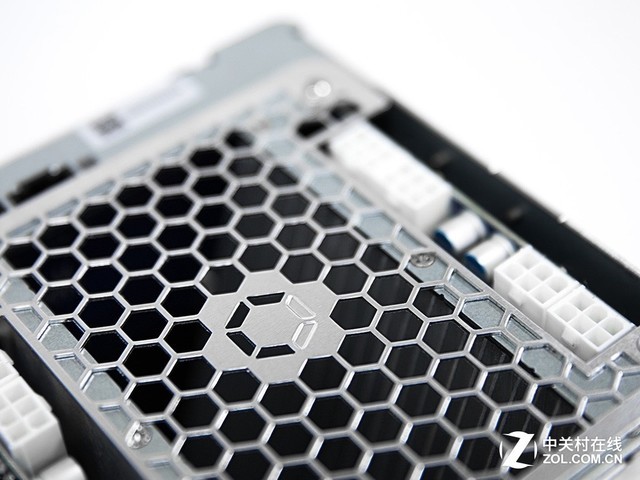

The overall structure of Avalon A841 mining machine is displayed

Avalon ASIC chip cluster inside the mining machine

Summary: The manufacturing process determines the basic constitution of the chip. The eighth generation of Avalon chips under Jia Nan yunzhi adopts TSMC Cash's 16nm process. The innovation of public welfare can make the chip obtain lower power consumption, so as to further reduce the overall power consumption of the mining machine, and this is the key weapon of avalon A851 mining machine to truly balance the power consumption.
