Antminer L3
Hot Sale Products A Classic Litecoin (LTC) Mining Machine Bitmain Antminer L3 +, Can Be Used For All Cryptocurrencies Based On Scrypt Low No Is High Profitability Wholesale Price There Are Two Specifications To Choose From L3+ Series 504M,L3++ Series 580m DDP Duty Free Transport For Fast Delivery.
Essential Information
Rated calculation force | 504M |
Frequency | 384M |
Fan | 2@12 V and 2.4 A |
Fan speed | front:4200rpm, rear:3600 rpm |
Working Temperature | 0 - 40℃ |
Ambient Humidity | 5% ~ 95% (non condensing) |
Noise | 60 dB |
Number of PCIE sockets | 9 |
Number of force calculation plates | 4 |
Number of chips | 288 |
PCB temperature | 90°C |
Power Waste | 800 ± 10% |
Energy efficiency ratio | 1.6J/MH±10% |
Voltage | 11.6 - 13 V |
Weight | 4.4 KG |
Size | 352 x 130 x 187 mm |
Packing weight | 6.5 KG |
Package size | 465 x 215 x 305 mm |
L3 + is a classic Wright coin miner in bitland, which can be used for encrypted digital currency of all scrypt algorithms. This miner has been available for more than a year, and the price of Wright coin has increased greatly last year. How is L3 + performing now? Let's have a look!
Basic product data
Name | Antminer L3+ |
Digging Currency | Wright coin |
Weight | 4.2kg |
Chip | BM1485(bit continental self research） |
Rated Calculation Force | 504M |
Rated Power Consumption | 800W |
Official Selling Price | 6000yuan |
Different from other mining machines, ant mining machine L3 + adopts the design of front and rear double fans and four calculation force plates (other ant series mining machines are three calculation force plates). The machine body is formed as a whole. It adopts precision die-casting design and aluminum alloy materials to provide strong protection for computing chips and improve the overall heat dissipation efficiency of the machine body.Appearance and workmanship

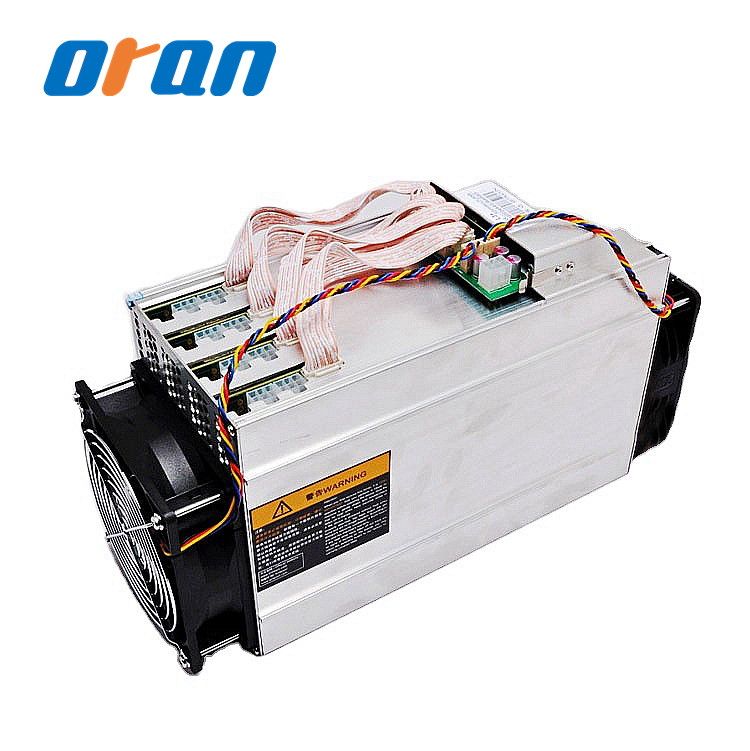

From the top of the mining machine, you can see that L3 + has four force calculation boards, each of which has three pci-e6pin interfaces, four data lines connecting the controller from the force calculation board, and the interface of the control board.

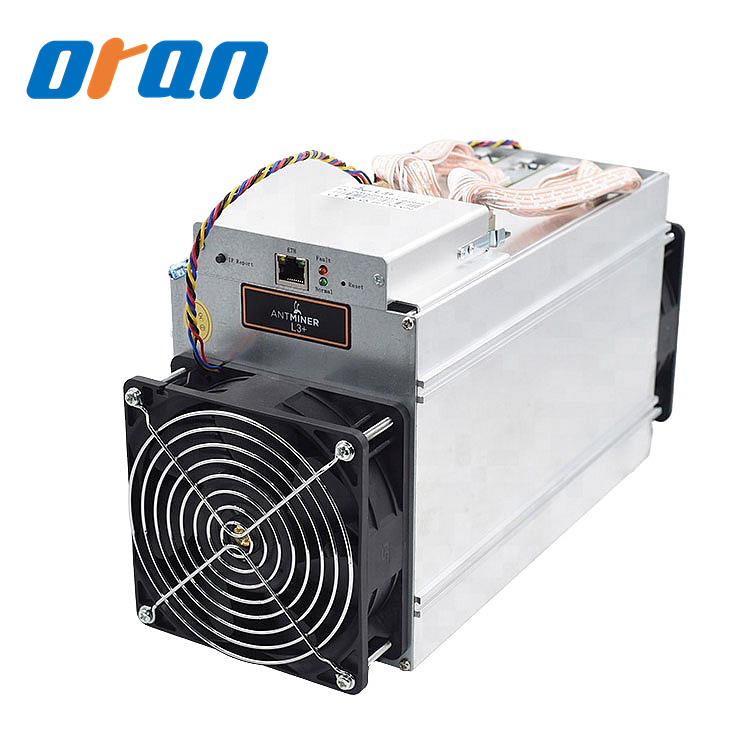

From the front of the miner, you can see the configuration of IP address feedback button, network cable interface, reset button and status indicator (as well as ant miner L3 + logo and QC label). The front fan of the miner can be seen from the front, from which the air is fed.

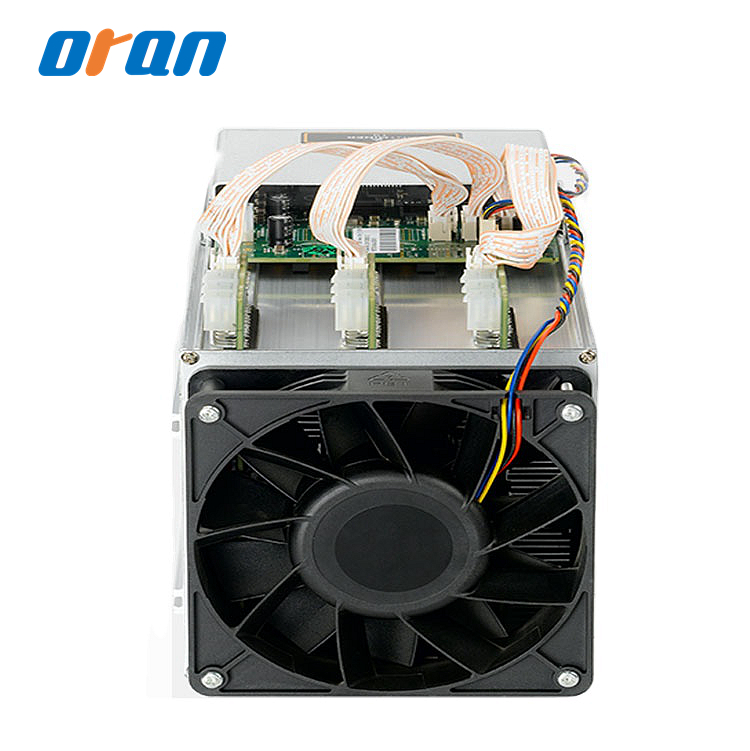

From the back of the miner, you can see the rear fan of the miner, and the air comes out from this side.
